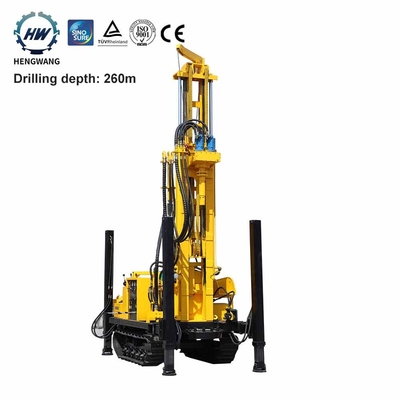

Mountains HENGWANG 200m Crawler Type Borehole Water Well Drilling Rig

1 Set
MOQ
$13,499.00(1 - 2 Sets) $12,999.00(>=3 Sets)
Prijs
Mountains HENGWANG 200m Crawler Type Borehole Water Well Drilling Rig
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Applicable Industries: Building Material Shops, Farms, Home Use, Construction works
Showroom Location: None
Condition: New
Type: Rotary Drilling Rig
Power Type: Diesel
Usage: Water Well
Voltage: diesel engine
Dimension(L*W*H): 3800*1700*2350
Weight: 4200 KG
Warranty: 1 Year
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, Pump, Engine
Key Selling Points: fast drilling speed
Drilling Diameter: 300mm, 100mm
Drilling Depth: Max.220m
Mobility: crawler
Product name: Water Well Drill Rig
Drilling depth: 220m
Drilling diameter: 130-300mm
Engine Power: 60Kw
Application: Mountains, rocks
Drill rod length: 3/4/4.5/6m
Air consumption: 15-27m3/min
geology: rock ,stone , etc
color: can be customized
mud pump: can be add
Local Service Location: Italy, Viet Nam, Indonesia, India, Mexico, Russia, Thailand, Australia, South Africa, Uzbekistan
After-sales Service Provided: Video technical support, Free spare parts, Online support, Field installation, commissioning and training
Certificering: CE/ISO
Basis informatie
Certificering: CE/ISO
Betalen & Verzenden Algemene voorwaarden
Packaging Details: drilling rig machine use for 20 ft or 40ft container to package
Supply Ability: 50 Piece/Pieces per Week water well drilling rig machine
Productomschrijving
HENGWANG 200m Crawler Type Borehole Water Well Drilling Rig
Product Overview

HQZ220L Pneumatic Drill Rig

Drilling rig for water wells, mineral exploration, geothermal applications,and can be used with tubular drilling tools.Pneumatic drilling rig is especially suitable for water intake in mountainous and rocky strata.HENGWANG 200m Crawler Type Borehole Water Well Drilling Rig
* Drilling Rock:20M~40M/Hour
* Drilling depth: 220m
* Drilling diameter: 130-294mm
* Engine Power: 60Kw* Competive Price
* Site Instrcution and Installation
* Professtional After-Sales Team
* CE, BV, TUV, ISO
PRODUCT SPECIFICATIONS
Specification for water well drilling rig
No
Model
HQZ220L
1
Overall weight （T )
4.2
2
Dimension (mm )
3800*1700*2350
3
Drilling diameter (mm )
130-294
4
Drilling depth (m )
220
5
One-time advance length of the drill(mm)
3000
6
Traveling speed （km/h )
2.5
7
Minimum Ground Clearance (mm）
250
8
Working Air Pressure (mpa )
1.7-2.5
9
Air consumption (m³/min)
15-27
10
Main machine power （kw)
Yunnei 60Kw
Model
HQZ-180L
Drilling depth
180m
Drilling diameter
130-245mm
Power
42kw
Dimension
3800*1600*2350mm
Weight
3.8t
Model
HQZ-320L
Drilling depth
320m
Drilling diameter
140-350mm
Power
85kw
Dimension
4200*1900*2600
Weight
9t
3D Showroom Competitive price diesel crawler type borewell air borehole rock drilling machine rig for well
See our wide range of well drilling rigs,meet different geology, different needs and create more wealth for you.HENGWANG 200m Crawler Type Borehole Water Well Drilling Rig
VR
PRODUCT CONFIGURATION
The drilling rig is multi-functional, with different configurations suitable for different geology.
All our water drilling rig accept customization, any good idea there please contact us, our engineers will help you get what you want, we can also put the rig on a truck mounted chassis.
Successful Project
The following pictures are from customer feedback(Viet Nam,Thailand,Chile,Mexico,South Africa,Philipines,Malaysia,Columbia,ect), we also have a large number of customer feedback videos, if you are interested, please contact us.Competitive price diesel crawler type borewell air borehole rock drilling machine rig for well
Related Product
Packaging&Shipping
Drill rigs are coated with anti-rust liquid naked, drill pipes are bundled and packed, impactors, drill bits and other accessories are packed in plywood boxes.
1 Set Shipped with 20GP;
Whole set with air compressor needs a 40GP;
Certifications
ISO Certification
CE
